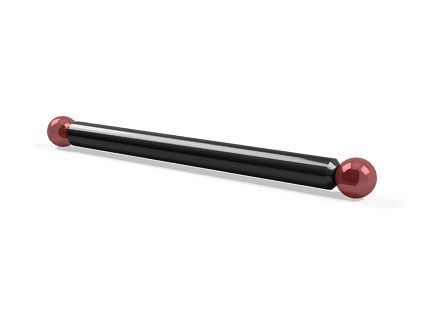

ICT calibration sphere 20mm
ICT calibration sphere 20mm
Article number:
18040105
Styli Type: Styli Straight Shaft
Thread: No thread

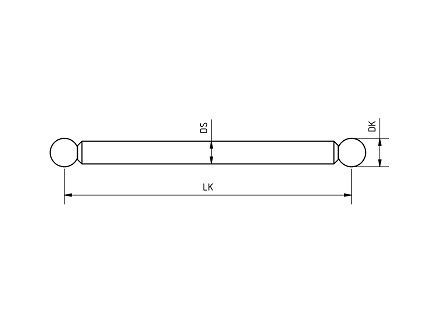

DK: 2 (2x)
DK Material: ruby
LK: 20
DS: 1,5
DS Material: carbon
Weight: 11.8g
Description
ICT Calibration Spheres are used in industrial computed tomography to check the dimensional accuracy and performance of the measuring system. They serve for calibration, verification, and monitoring of measurement precision and are made of high-stiffness carbon fiber, which is extremely lightweight, dimensionally stable, and temperature-resistant – for dependable and repeatable CT measurement results. The gray value during radiographic inspection is very low compared to other materials.
Product information "ICT calibration sphere 20mm"
"CT-Prüfkörperstäbe werden in der industriellen Computertomografie eingesetzt, um die Maßhaltigkeit und Leistungsfähigkeit des Messsystems zu prüfen. Sie dienen zur Kalibrierung, Verifizierung und Überwachung der Messgenauigkeit und bestehen aus hochsteifen Carbonfasern, die extrem leicht, formstabil und temperaturunempfindlich sind – für verlässliche und reproduzierbare CT-Messergebnisse. Der ""Grauwert"" bei der Durchstrahlung ist sehr nieder im Gegensatz zu anderen Materialien."
